2302 Legacy


Wherever you go - whatever waters or species you pursue - the 2302 Legacy’s rugged hull is up to the challenge. High, flared sides ensure a dry ride for everyone on board. The helm holds a wide station with room for two chartplotters, a deluxe leaning post, and rod management with storage for up to 10 rods. At the transom, three-across seating doubles as livewell and cast net storage. A recirculating baitwell and raw water shower round up the fishability attributes.

The 2302 Legacy’s stable, wide fishing deck is easily converted to a picnic area with an optional bow table. Comfortable bow seating features extendable back rests that fold flush with the gunnel when the fish start to tug the lines.

The staunch 2302 Legacy will get you to fish your best - and bring friends and family to the game.

Specs

Download Details PDF
Note: Draft and bridge clearance may change depending on motor selection, amount of fuel, and gear added. *The usable fuel capacity will be affected by factors such as EPA-required fuel system components, temperature, and boat loading which may reduce the usable fuel capacity by 10%.

Length

22' 3" / 6.78 M

Beam

102" / 2.59 M

Maximum HP

250 HP / 186 kW

Transom Height

25" / 0.64 M

Draft (Approx.)

15" / 0.38 M

Deadrise @ Transom

19°

Deadrise @ Entry

42°

Bridge Clearance (w/Fiberglass T-Top)

8 ft. / 2.44 M

Approximate Weight

2700 lbs/ 1225 KG

*Fuel Capacity

85 Gal / 322 L

In-Console Cooler (Livewell Option)

15 Gal / 57 L

Aft Livewell

30 Gal / 114 L

Port/Starboard Bow Fish Boxes

20 Gal / 76 L

Persons/Total Weight

10 / 2000 lbs / 907 KG

Max Weight Capacity

3000 lbs / 1361 KG


  • Photos
  • Features
  • Videos
  • Options
  • Performance Bulletins

Some photos may include optional features.

2022 NEW FEATURES & OPTIONS:

NEW UPHOLSTERY FABRIC COLOR / NEW SEADEK COLOR
DUAL BATTERY SWITCH MADE STANDARD
CANVAS COLORS – BLACK AND SLATE ONLY

CONSTRUCTION

  • Wood-Free, Composite Construction
  • Limited Lifetime Hull Warranty
  • Vinyl Ester Barrier Coat
  • Fiberglass Stringer System
  • Self-Bailing Cockpit w/ Molded Non Skid
  • RTM Fiberglass Lids
  • Teleflex SeaStar Pro Hydraulic Steering w/ Tilt
  • Teleflex Extreme or Yamaha Control Cables
  • Molded Anchor Storage w/ Anchor
  • Dual Insulated Fish Boxes Forward w/ Drain
  • Raw Water High Pressure Wash Down
  • Raw Water Transom Shower
  • Syntec Vinyl w/ Nano-Block Stain Protection
  • Transhield® Shipping Wrap
  • Chrome 3D NauticStar Logo
  • AFT BAITWELL
  • Brass Thru-Hull High Speed Aerator Pickups
  • Aft Recirculation Pump – 500 GPH w/ Timer
  • Aerator Pump – 800 GPH w/ Timer
  • LED Livewell Light

HARDWARE

  • Stainless Steel Latches
  • Recessed Stainless Steel Bow Rails
  • Stainless Steel Rub Rail
  • Stainless Steel Thru Hull Fittings
  • Stainless Steel Drink Holders – 6
  • Stainless Steel Gunnel Rod Holders – 4
  • Horizontal Gunnel Rod Holders – 3 Ea./Side
  • Stainless Steel Pull-Up Cleats – 4
  • Brass Shut Off Ball Valves
  • Stainless Steel 3-Step Ladder – Aft Starboard Side
  • Brass Splashwell Drains
  • Stainless Steel Floor Drains

EFFECTIVE: July 1, 2020. Specifications are subject to change without notice. Packages do not include trailer.
*The usable fuel capacity will be affected by factors such as EPA-required fuel system components, temperature, and boat loading which may reduce the usable fuel capacity by 10%.

CONSOLE

  • Portlight Side Window In Console
  • Curved Windshield
  • SeaDek on Console Top
  • Custom Stainless Steel Wheel w/ Power Knob
  • Helm Station with Area for 2 Large Chart Plotters
  • In-Console Cooler (Livewell Option) – 15 gallon
  • Kick Panel w/ Foot Pad
  • Flush Mount Compass
  • Horn w/ Stainless Steel Grill
  • 12 Volt Acc. Plug
  • Deluxe Leaning Post w/ Made-on Backrest, Storage, Rod Holders,
  • Folding Footrest, and 94 Qt. Igloo® Cooler
  • Infinity Stereo w/ Bluetooth & 2-Speakers
  • (total of 4 Speakers w/ T-Top Option)
  • LED Navigation and Courtesy Lights

COMFORT

  • Plush Bow Seating w/Optional Bow Filler and Optional Flip-out Backrest
  • Plush 3-Across Aft Seating w/ Battery Storage (starboard), Insulated
  • Cooler (middle), and Cast Net/Bucket Storage (portside)

MARINE GRADE ELECTRICAL SYSTEM

  • Circuit Breaker Protection
  • Stainless Steel Toggle Switches
  • Dual Battery Shut Off Switch
  • Deutsch Electrical Connectors
  • Speedometer, Tachometer, and Fuel Gauges
  • Auto Bilge Pump – 750 GPH
  • Bilge Pump – 800 GPH

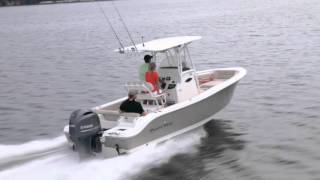

uiUXdg0igP0 thumbnail image

Available Motor Packages

  • Yamaha F150XB – 25″ Shaft
  • Yamaha F200XB – 25″ Shaft
  • Yamaha VF250XA – 25 ” SHO MTR

Interior

  • Reef Gold Interior
  • Matrix Flint Interior

Helm and Electronics

  • Gauge Package: Hour Meter and Trim
  • 6YC Digital Gauge Kit
  • Simrad® Go7 7″ Touchscreen Fishfinder/Chartplotter with B60 20° transducer
  • Simrad® Go9 9″ Touchscreen Fishfinder/Chartplotter with B60 20° transducer
  • Simrad® Go12 XSE 12″ Touchscreen Fishfinder/Chartplotter with SS60 20° transducer
  • Simrad® NSS12 EVO3 12″ Touchscreen Fishfinder/Chartplotter with B60 20° transducer
  • Trim Tabs w/ Standard Switch
  • Trim Tabs w/ Led Switch
  • SeaDek® Anti-fatigue Helm Mat- Reef Gold Interior
  • SeaDek® Anti-fatigue Helm Mat- Matrix Flint Interior

Water System

  • Fresh Water Kit

Accessories

  • Port-A-Pottie – Ceramic Gravity Flush Toilet
  • Table Kit
  • Overboard Waste Discharge
  • YETI® Cooler Exchange – 65 Qt
  • Portable Toilet
  • CE Certification Labeling (European Market)
  • Underwater Light Kit
Yamaha Outboard Performance Bulletins provide in-depth performance information on the NauticStar boat and engine combinations listed below. Click on the links below to download a PDF of the Performance Bulletins.
Notice to Consumer: The information and data contained in this Performance Bulletin is approximate and subject to many different factors and variables. It is provided as a guideline only and should not be relied upon as representative of actual performance. Your boat’s performance may be different than the information contained in this Performance Bulletin due to various factors, including your boat’s actual weight, wind and water conditions, temperature, humidity, elevation, bottom paint, boat options affecting wind/water drag and/or boat weight, and operator ability. Please confirm the specifications and performance data on your specific boat/engine combination with your dealer prior to purchase. Please also keep in mind that the data contained in this Performance Bulletin may or may not have been performed using Yamaha PowerMatched components. Yamaha reserves the right to change the specifications and performance data of this Performance Bulletin or engine without notice. This document contains many of Yamaha’s valuable trademarks. It may also contain trademarks belonging to other companies. Any references to other companies or their products are for identification purposes only, and are not intended to be an endorsement.


Factory Installed with Yamaha Performance

All Yamaha four strokes exceed Federal EPA 2006 emission requirements. The 50hp and up have earned a California C.A.R.B three-star rating.
